PlugTech

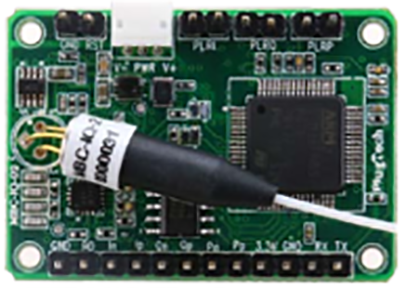

Ultra Compact IQ Modulator Bias Controller

Ultra Compact IQ Modulator Bias Controller

SKU:MBC-IQ-03A

Regular price $2,775.00
Regular price Sale price $2,775.00
Sale Sold out

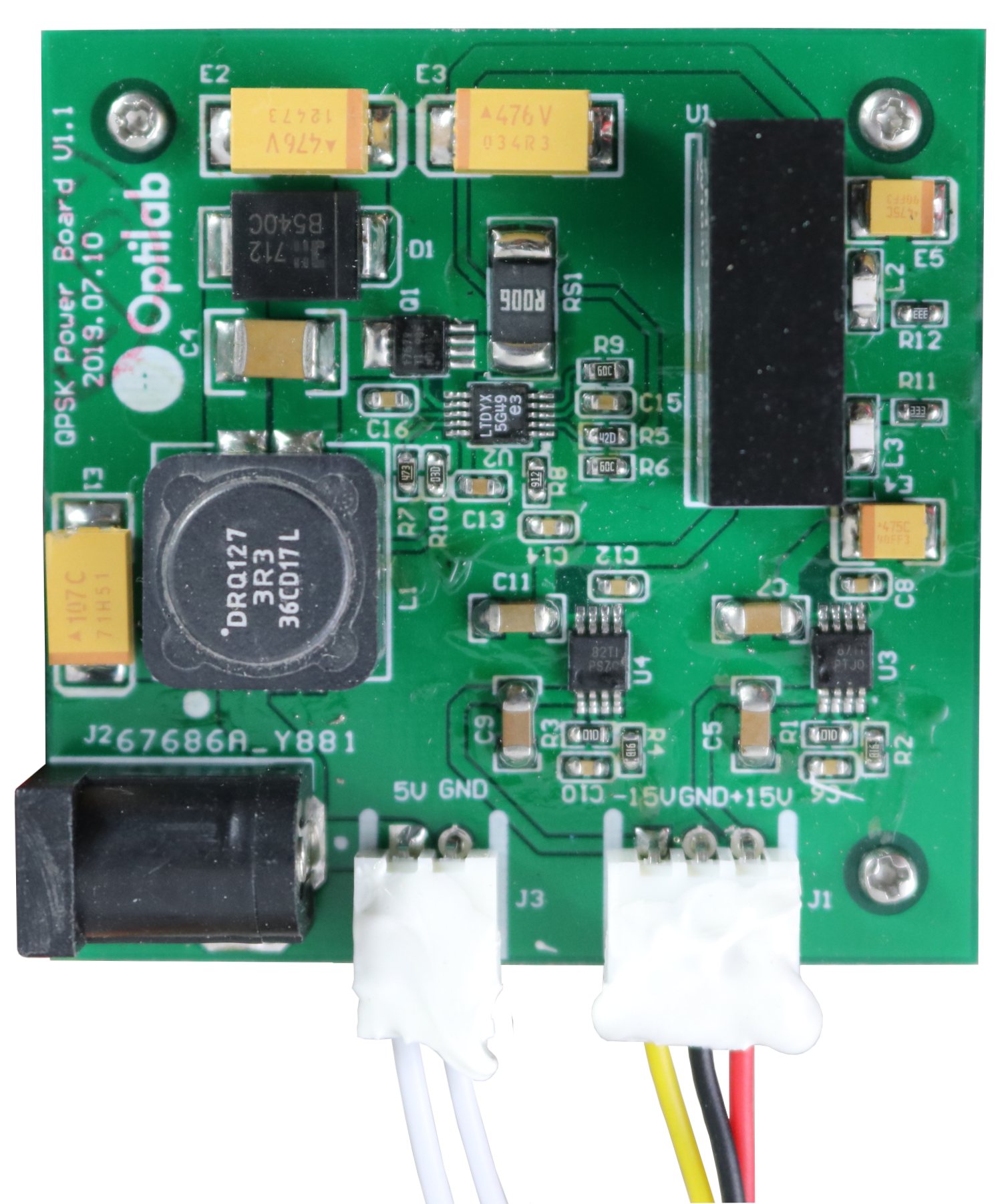

Power Supply

Optilab MBC-IQ-03A is specially designed Automatic Bias Controller for IQ modulator. It is compact in volume and ensure a stable operation state in various operating environments as well as for communication systems. Based on its fully digitized signal processing method, the controller can provide ultra stable performance. The controller injects a low frequency, low amplitude dither signal together with a bias voltage into the modulator. It keeps reading the output from the modulator and determines the condition of the bias voltage and the related error. A compensate bias voltage will be applied afterwards according to the previous measurements ensuring the IQ modulator to work under a proper bias voltage. Contact Optilab for more information.

Features:

• High stability: fully digital implementation
• Modulation format independent for QPSK, QAM, OFDM, SSB
• Provides thee biases for IQ modulators
• Automatic bias control & user defined bias voltage

Applications:

• Coherent Transmission
• QPSK, QAM, OFDM, SSB and etc
• LiNbO3 and other IQ modulators
• Research & Development

Datasheet

Powerboard Reference Guide

View full details
