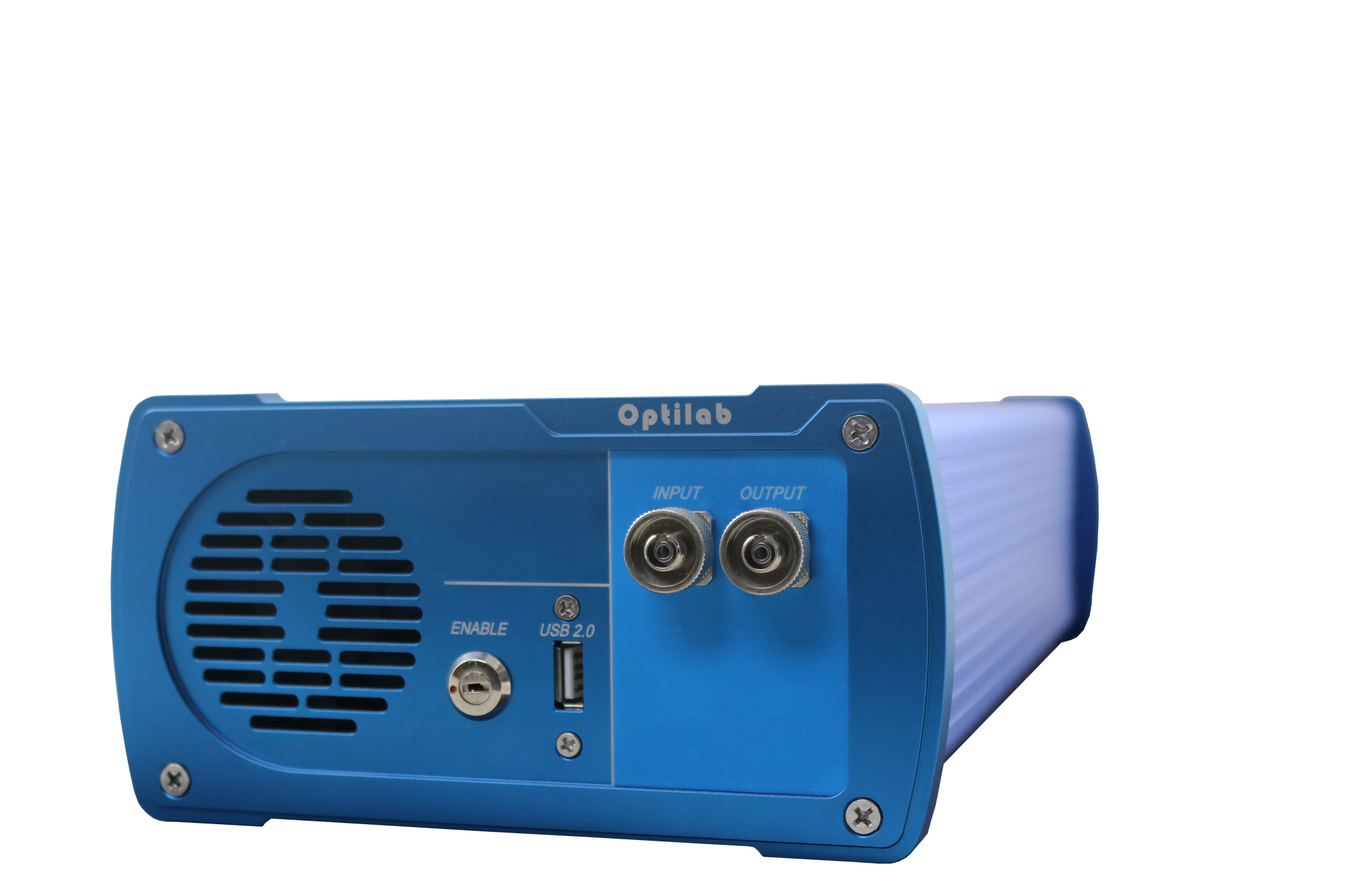

The Optilab YDFA-XX-PM-BM is a polarization maintaining optical amplifier unit designed for applications requiring high efficiency optical amplification in the 1060 nm regime in both CW and pulse mode operations. It is a self-contained, turn-key Big Module designed to supply high and stable gain across the specified range of the wavelength window with optical output power up to +19 dBm.

Features:

• High SNR near saturation power • Saturation power Up to +20 dBm • Single Stage Amplification • PM Output • Pulse and CW operation modes • Interlock safety feature

Applications:

• SHG • Medical • Industrial • Fiber Optic Sensing • Lower Power Pulse Amplification • MOPA

Datasheet
