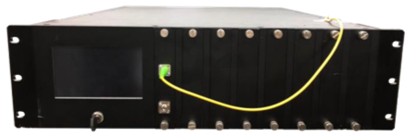

Raman Amplifier, Rackmount, C-Band, 1520nm to 1560nm
Raman Amplifier, Rackmount, C-Band, 1520nm to 1560nm
SKU:RA-C1-15-R
Optilab Raman Amplifier Rackmount Units are designed for distributed Raman amplification in C-Band. The RA-C1-15-R unit provides over 15 dB On/Off gain flattened amplification from 1520nm to 1560nm, thus can support up to 50 DWDM channels. Each of the two pump channels is configured with two high power pump laser diodes and one polarization beam combiner (PBC). The pump wavelengths are 1426nm and 1445nm. The unit includes micro-controller based laser current control circuitry for enhanced stability and reliability. RA-C1-15-R is an ideal amplifier for high channel count DWDM 40G/100G transmission and fiber sensor systems. It is equipped with LCD touch screen and LabVIEW (TM) remote user interface for easy operation. Contact Optilab for more information.
Features:
• 1520 nm - 1560 nm
• Over 15 dB On/Off Gain
• Gain flatness of < ±1.5 dB
• Excellent Stability
• Up to 50 DWDM Channels
• Touch Screen LCD & USB Interface
Use In:
• Long Haul/Ultra-Long Haul Systems
• Long Repeaterless Links
• Low Latency Links
• Multi-Channel DWDM Networks
• 40/100 Gbps Transmission
