optilab

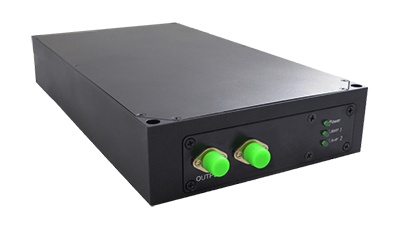

Femtosecond Mode-Locked Laser, Module, All PM Fiber Option

Femtosecond Mode-Locked Laser, Module, All PM Fiber Option

SKU:FML-15-PM-M

Regular price $25,363.00
Regular price Sale price $25,363.00
Sale Sold out
With Power Supply

The Optilab FML-15-PM-M Module Femtosecond Mode-Locked Laser (FML) utilizes an unique saturable absorber for passive mode locking and delivers Femtosecond (FS) laser pulses with an excellent power stability and reliability. Designed with no moving parts, and requiring no construction, the FML-15-PM-M offers an user-friendly USB interface for remote monitoring and current control. The FML-15-PM-M is an all fiber ring with all PM fiber construction, and built with established telecom components make the laser highly stable while keeping cost low. The pulse width is factory selectable from 300 to 600 fs, with near transform-limited pulse shape and a better than 20 dB pedestal, and the pulse repetition rate can be specified from 20 to 40 MHz. With up to 30 mW output power, and an EDFA for amplifying the seed mode locked laser pulses, the FML-15-PM-M is the most cost-effective solution for applications requiring low to medium power. The all PM fiber version also features a 20 dB extinction ratio, contact Optilab for more information.

Features
• All PM fiber construction, ER of 20 dB
• No moving parts, requires no adjustment
• Pulse width adjustable from 300 fs to 600 fs
• Integrated EDFA w/ +15 dBm output
• 1550 to 1560 nm peak wavelength
• Near transform-limited output
• Minimal pulse pedestal
• Compact, low power, reliable
• 3 year warranty standard
