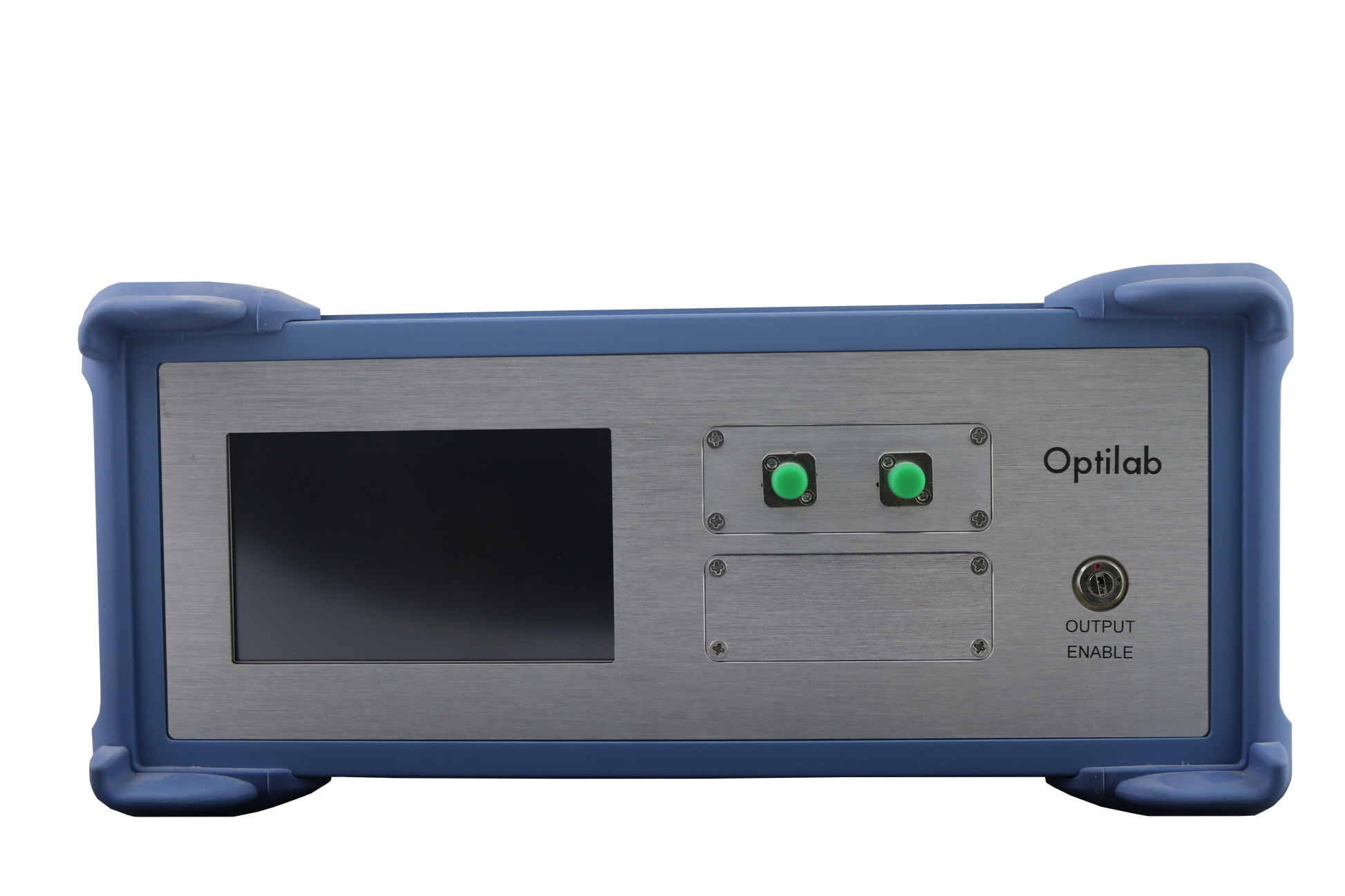

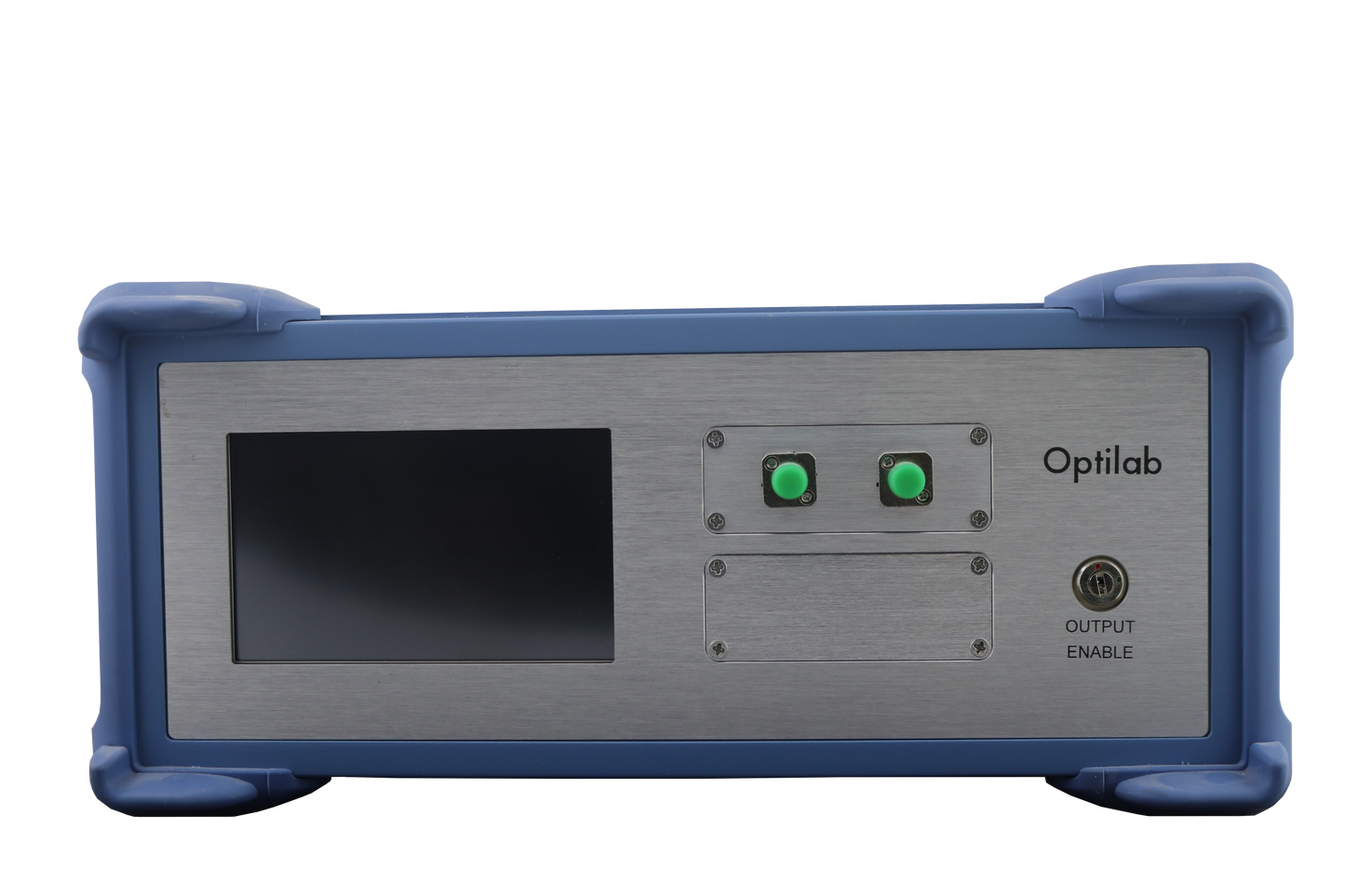

Erbium-Doped Fiber Amplifier, C-Band, Benchtop w/PM Output

The Optilab EDFA-C-XX-PM-B Erbium-Doped Fiber Amplifier (EDFA) is a Polarization Maintaining (PM) high-gain, versatile amplifier designed for optical communication and other general-purpose optical applications. EDFA-C-XX-PMB provides optical gain of up to 30 dB, while maintaining low noise figure (NF) of 5 dB. The EDFA-C-XX-PM-B amplifier produces optical output levels from +17 dBm to +21 dBm with an input power level range from -10 dBm to +7 dBm. This product features adjustable output level power via ACC through the front panel and software control through USB. Contact Optilab for more information.

Features:

• Up to +21 dBm output power • Optical gain up to 30 dB • Software control through USB • Single Stage Amplification • PM Output • Input power level range: -10 dBm to +7 dBm • Automatic Current Control (ACC) standard

Applications:

• Optical Communication • Test and measurement • General-purpose optical amplifier
