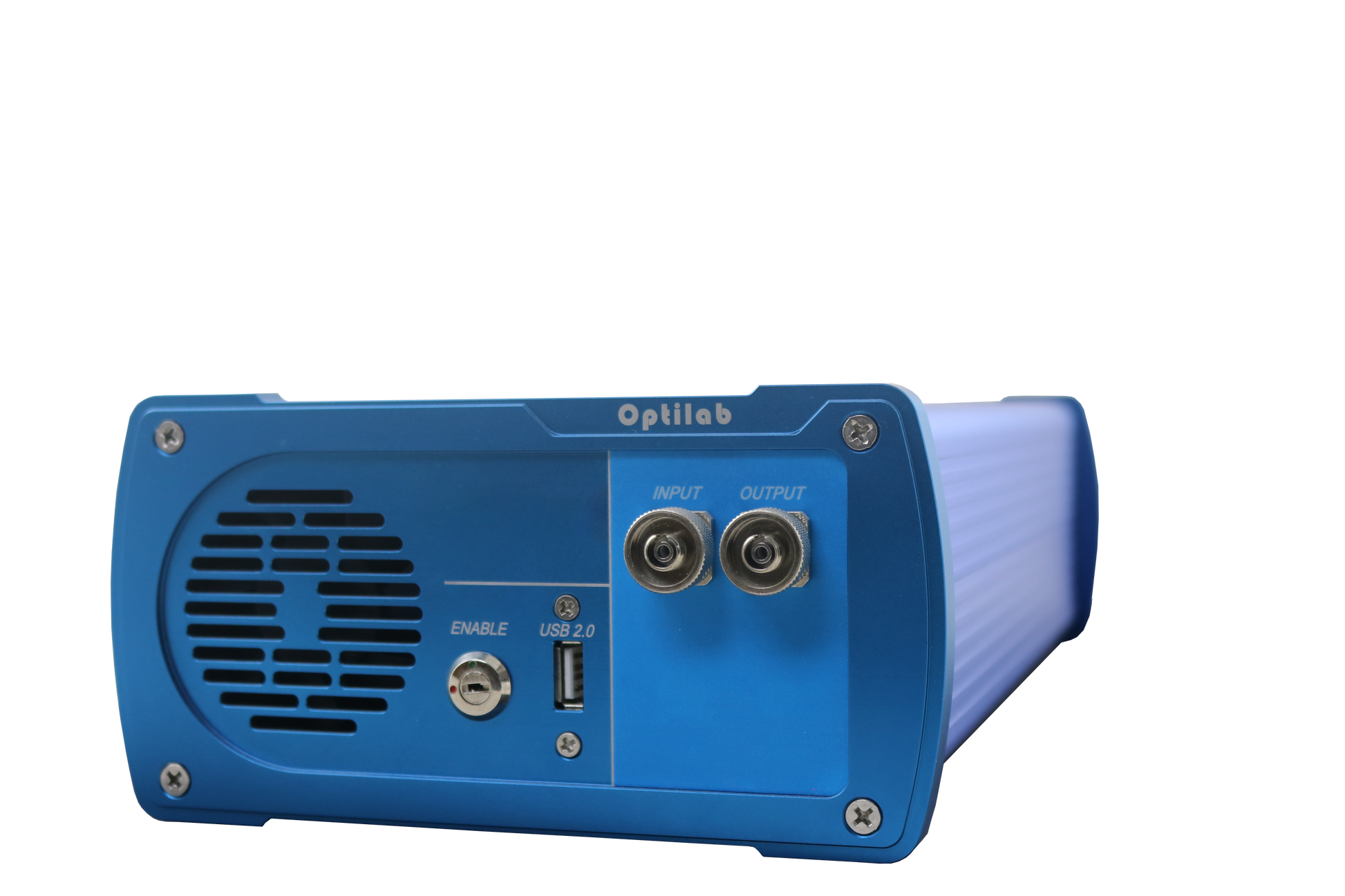

The Optilab YDFA-XX-PM-BM is a high-gain dual pumped polarization maintaining optical amplifier unit designed for applications requiring high efficiency optical amplification in the 1060 nm regime in both CW and pulse mode operations. It is a self-contained, turn-key big module designed to supply high and stable gain across the specified range of the wavelength window with optical output power up to +30 dBm.

Features:
• PM Output • High SNR near saturation power • Saturation power Up to +30 dBm • Dual Stage Amplification • Pulse and CW operation modes • Interlock safety feature • Gain up to 40dB

Applications:

• SHG • Medical • Industrial • Fiber Optic Sensing • Lower Power Pulse Amplification • MOPA
