1610 nm CWDM Pulse Laser, Coaxial DFB w/Fiber Output
1610 nm CWDM Pulse Laser, Coaxial DFB w/Fiber Output
SKU:DFB-P-CX-1610
Couldn't load pickup availability

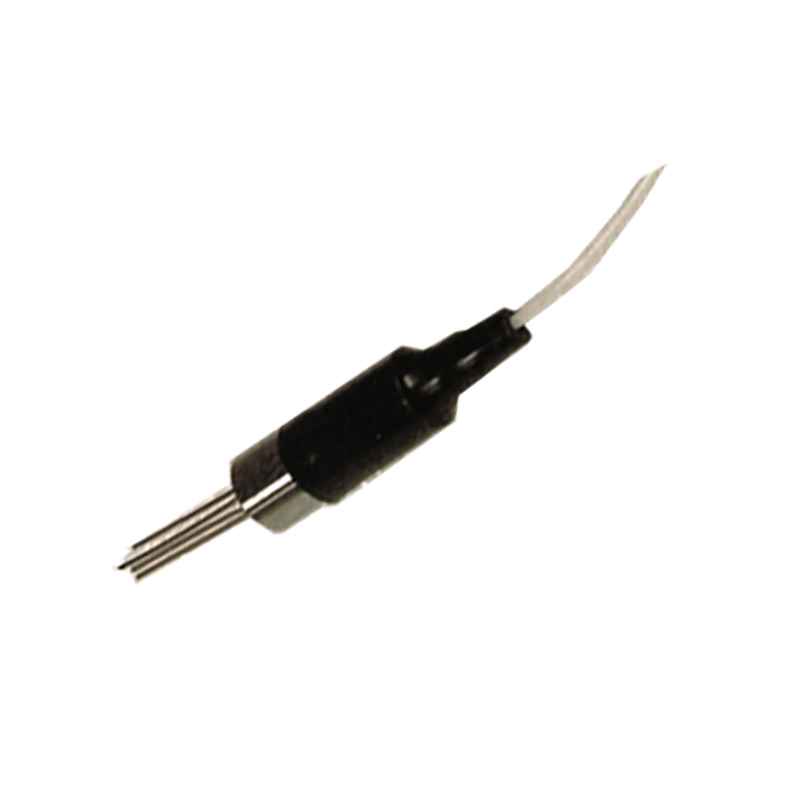

The DFB-P-CX is a CWDM pulse coaxial DFB-LD for CWDM analog communication, HFC return-path, laboratory instrument, and R&D applications. This cost-effective, high reliability DFB laser chip has a selectable wavelength with range between 1270 nm and 1610 nm. The versatile DFB-P-CX also features a built-in InGaAsP monitor photodiode, built-in optical isolator and 4-pin coaxial-pigtailed package, single mode coupling, and an FC/APC connector.
FEATURES
Selectable Wavelength: 1270 nm to 1610 nm
4-PIN Coaxial-pigtailed, Single Mode Coupling
High Reliability DFB Laser Chip
Up to 50 mW Peak Power
Built-in InGaAsP Monitor Photodiode
Built-in Optical Isolator
USE IN
OTDR and Reflectometer
LIDAR and Fiber Sensor
Laboratory Instrument
R&D Applications
Lead Time: Please Call
