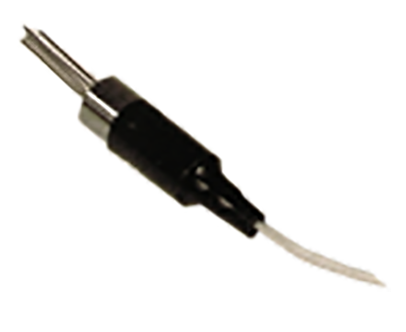

CWDM Laser 1270 nm to 1610 nm Coaxial DFB w/PM Fiber Output

CWDM Laser 1270 nm to 1610 nm Coaxial DFB w/PM Fiber Output

SKU:DFB-CX-PM-1270

Regular price $385.00
Regular price Sale price $385.00
Sale Sold out
Wavelength
Output Power

The DFB-CX-PM is a Polarization Maintaining CWDM Coaxial DFB-LD for CWDM analog communication, CATV return-path, laboratory instrument, and R&D applications. This cost-effective, high reliability DFB laser chip has a selectable wavelength with range between 1270 nm to 1610 nm. The versatile DFB-CWDM also features a built-in InGaAsP monitor photodiode, built-in optical isolator and 4-pin coaxial- pigtailed package, single mode coupling, and an FC/APC connector. Contact Optilab for more information.

Features

➤ Selectable wavelength: 1270 nm to 1610 nm
➤ 4-PIN coaxial-pigtailed, single mode coupling
➤ High-stability DFB laser chip
➤ Built-in InGaAsP monitor photodiode
➤ Built-in optical isolator.                                                                                Polarization Maintaining (PM) Output


Application
➤ CWDM analog communication
➤ CATV transmission return-paths
➤ Laboratory instrument
➤ R&D applications                                                                                                           ➤Fiber Sensing
