optilab

40 DWDM Channel, DWDM Source Bank, Single Mode Output (SM)

40 DWDM Channel, DWDM Source Bank, Single Mode Output (SM)

SKU:DSB-40-B-20

Regular price $62,160.00
Regular price Sale price $62,160.00
Sale Sold out
Power Level

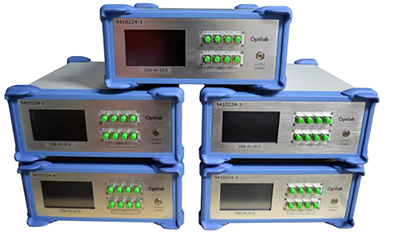

The DWDM Source bank is a 40 channel DSB system that produces 40 ITU channels with 40 DFB laser sources, split among five Optilab, touchscreen benchtop units. The wavelength and output power for each channel is tuned through use of the touchscreens or through a Z-link wireless controller and LabVIEW software.
Contact Optilab for more information @602-343-1496

Features:
• 40 ITU channels
• Adjustable wavelength and Current
• Output can be customized to PM Panda Fiber Connector
• Wavelength stability of ±5nm
• Easy-to-use Touchscreen
• Powerful LabVIEW Software for remote control and monitoring

Software:
• 7” LCD Touchscreen
• Built-in Intuitive GUI
• Remote Control via Z-link

Applications:
• Laboratory Testing and Measurement
• DWDM Networks
• Seed Laser
• Fiber Optics Components
• Fiber Sensors

Customization:
• PM or SM outputs available
• Various power levels (5 mW, 10 mW, 20 mW)
• A large selection of ITU channels (can specify number of each)

Datasheet
