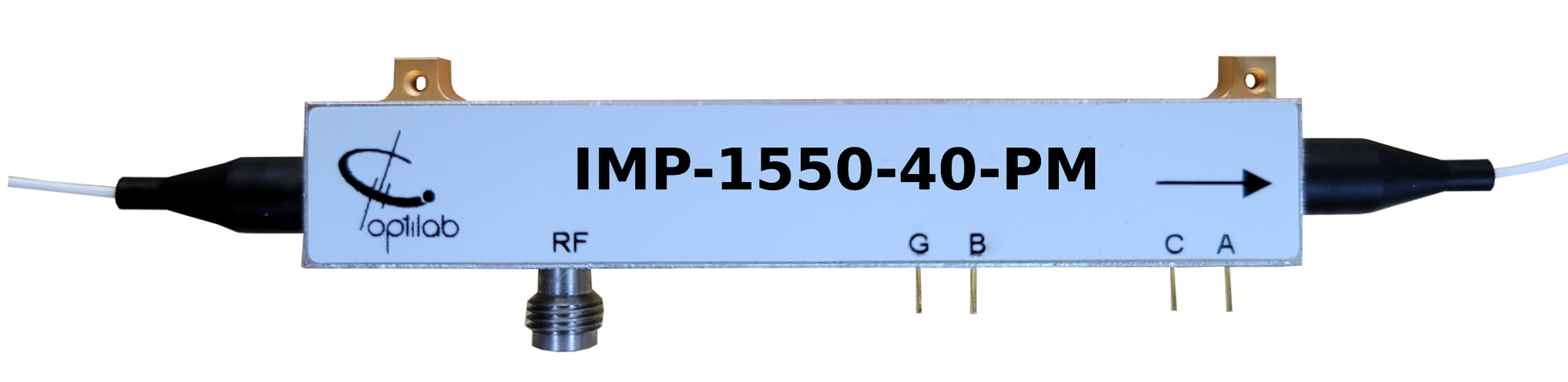

1550 nm, 40 GHz Intensity Modulator w/PM Output

The Optilab IMP-1550-40-PM is a Mach-Zehnder interferometer-based intensity modulator designed for C band optical wavelength. The optical waveguide is fabricated with Annealed Proton Exchange(APE) process on X-cut single crystal lithium niobate material. It features a zero-chirp design and polarized input / output with PM fiber pigtails. Applications include digital transmission up to 40 Gb/s, analog RFoF transmission to 40 GHz, optical pulse generation, mode-locked fiber laser and microwave optical link. Thanks to our proprietary APE technology, IMP-1550-40-PM can handle input power beyond 100mW and is a bias-stabilized modulator. Contact Optilab for more information.

Features:

• 1525-1575nm operating wavelength
• High Extinction Ratio (HER) Available
• Temperature range of -5oC to 70oC
• PM fiber output
• High Optical Input
• Zero chirp design

Applications:

• Analog modulation up to 40 GHz
• Active mode locked laser
• Microwave Photonics Link
• RF over fiber
• Pulse generation
• MOPA
