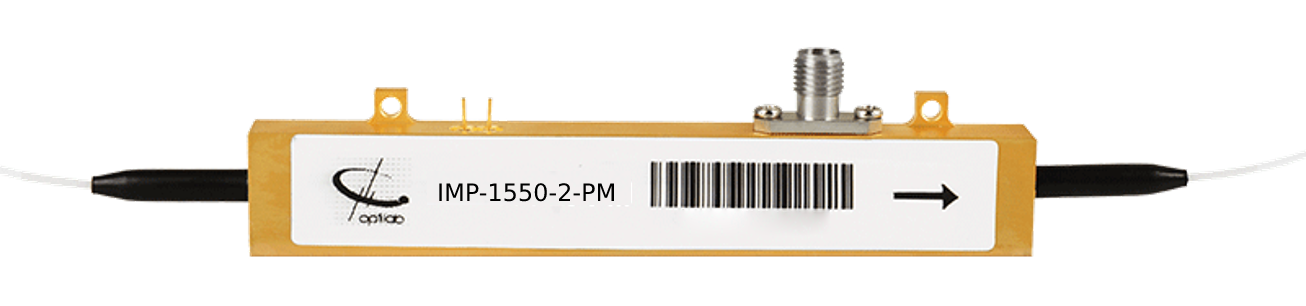

1550 nm, 2 GHz Intensity Modulator w/PM Output

The Optilab IMP-1550-2-PM Intensity Modulator is designed for analog modulation of up to 2 GHz for satellite links, antenna remoting, and RF over Fiber. Featuring an Annealed Proton Exchange (APE) waveguide, this modulator provides low insertion loss, low Vpi, and high-power handling capability. It has an operating temperature tolerance ranging from -10 oC to +55 oC, and superior insertion loss provides for its maximum transmission power. The IMP-1550-2-PM uses Polarization Maintaining (PM) input and output fibers. Contact Optilab for more information.

Features:
• Excellent stability in a biased circuit
• Polarization Maintaining output
• 1550 nm operating wavelength
• Low insertion loss, low Vpi
• High input power handling capability
• Lump electrode design

Application:
• Analog Modulation
• Pulse Generation
• Research & Development
• Quantum Photonics
• Active Mode Locking Laser
