optilab

C-band 1, 2, 4, or 8 channel DFB Laser Source, up to 50 mW, PM Output

C-band 1, 2, 4, or 8 channel DFB Laser Source, up to 50 mW, PM Output

SKU:DFB-1-B-1550-PM-10

Regular price $3,953.25
Regular price Sale price $3,953.25
Sale Sold out
Channels
Output Power

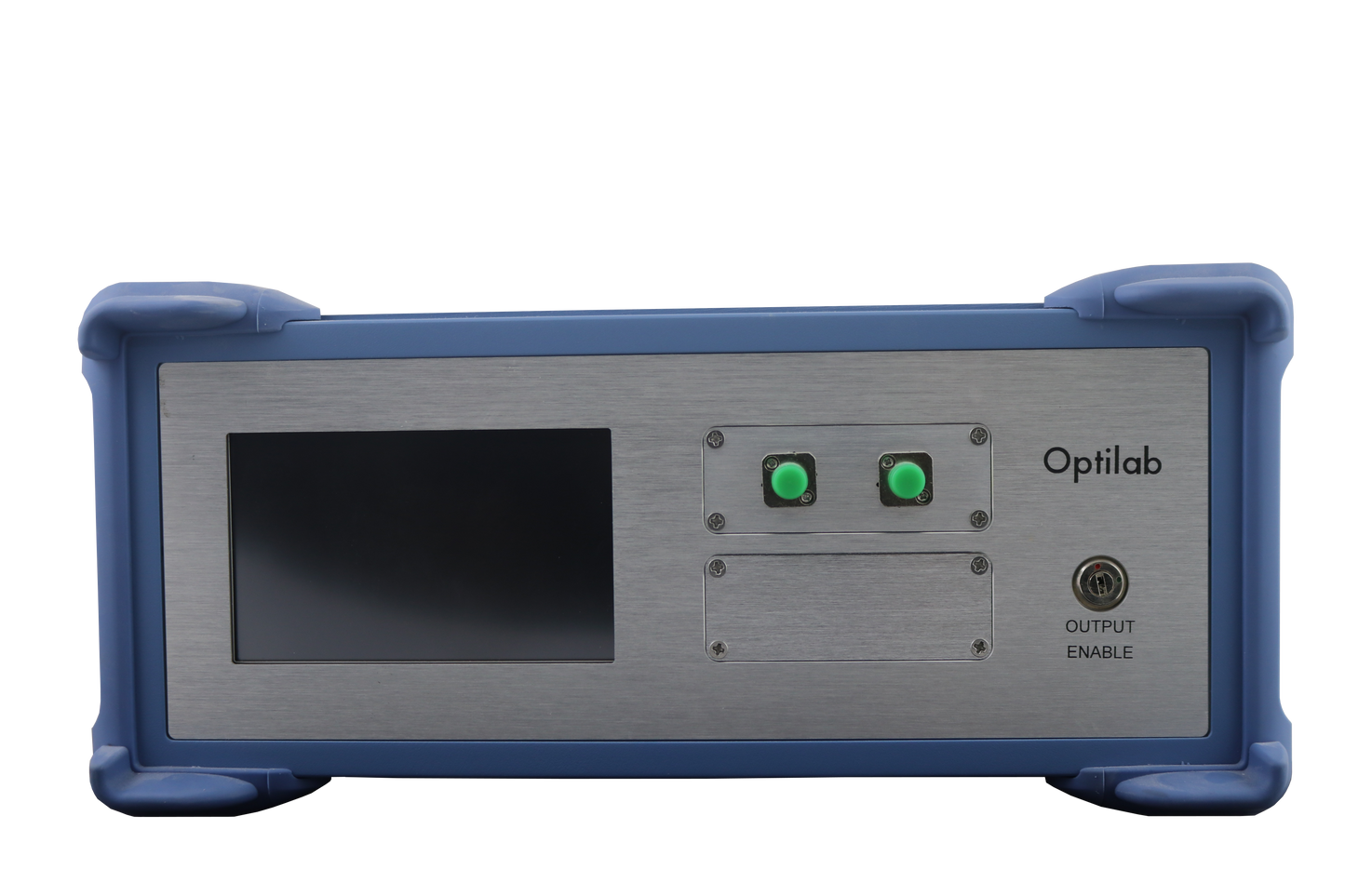

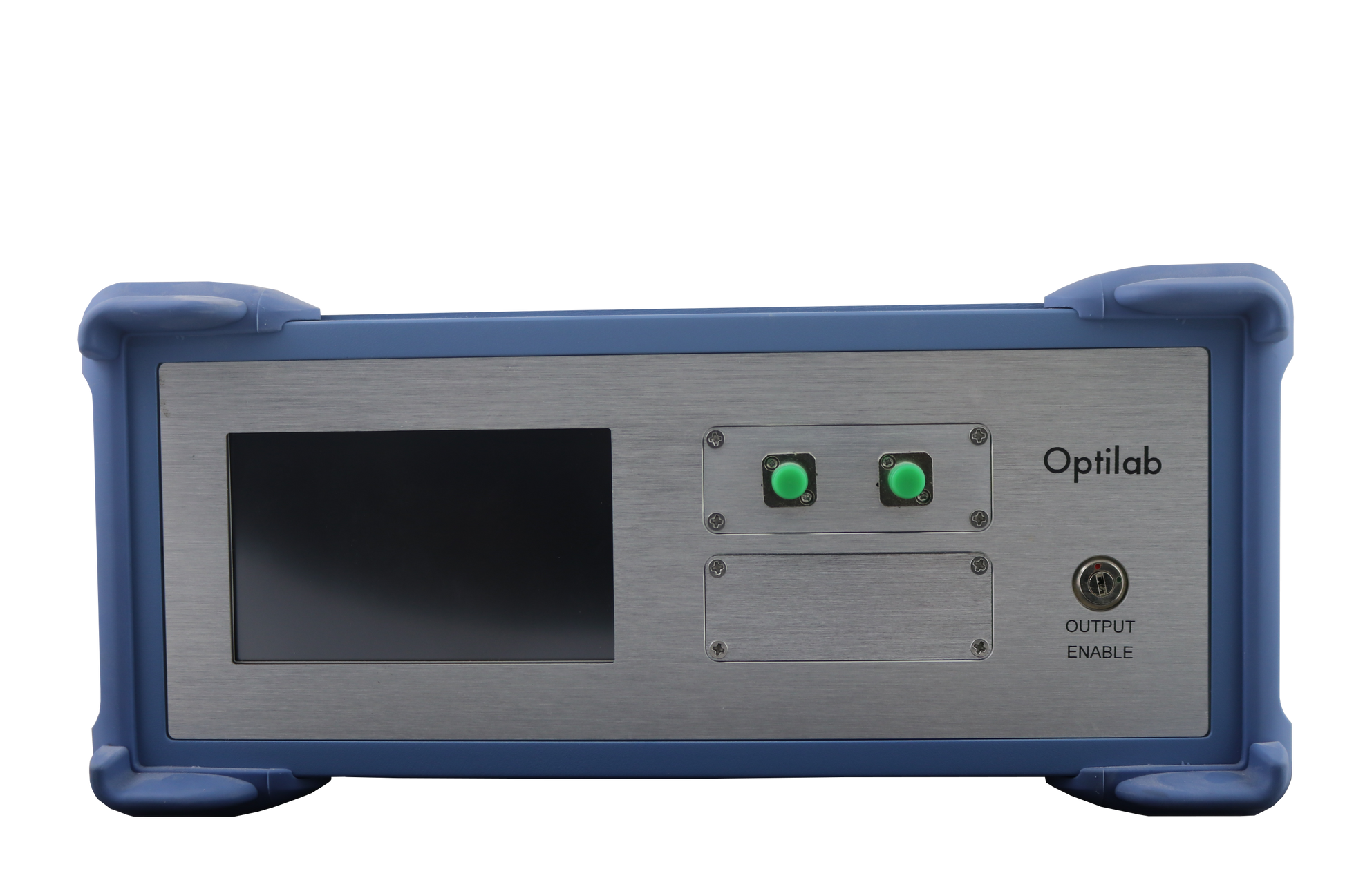

The Optilab DFB-B is a Distributed Feedback (DFB) laser source in a benchtop unit designed for general laboratory applications. The DFB-B is a reliable and high-performance DFB laser source for providing up to 8 DFB wavelengths. With Optilab’s comprehensive inventory of high-quality lasers, the DFB-B source can be ordered from a large variety of wavelengths and it is constructed with Telcordia-qualified laser to ensure 15+ years of operating life. The DFB laser’s operating temperature and drive current are precisely monitored by a micro-controller to ensure constant output power and emission wavelength stability. Using its intuitive front panel or an optional USB interface, the user can control the DFB output power level by adjusting the laser drive current and emission wavelength via TEC. Contact Optilab for more information @602-343-1496.

Features:
➤Up to 8 Wavelengths DFB sources
➤DFB with up to 50 mW output
➤Stability Wavelength to ±5 pm
➤Wavelength tuning range: ±1.5 nm
➤USB Control Interface (Optional)
➤C band wavelengths available

Applications:
➤DWDM Networks
➤Seed Laser
➤Fiber Sensors
➤Laboratory testing and measurement
➤Fiber Optics Components Testing
