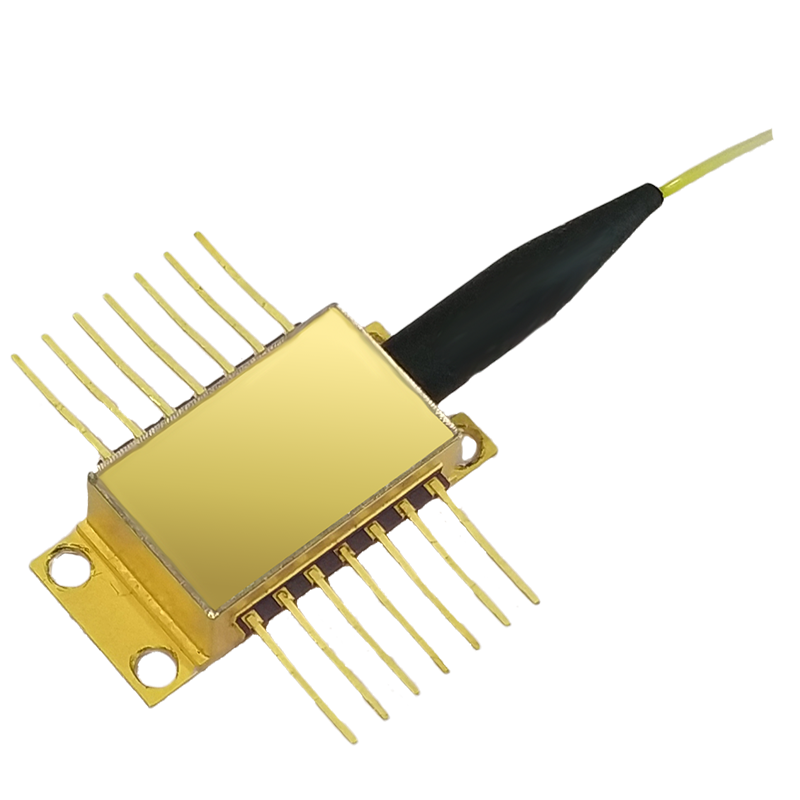

The pump has been designed for use in a wide variety of optical amplifiers, such as EDFA and Raman amplifiers used in optical transmission systems, especially in dense wavelength division multiplexing (DWDM) systems. A strained multi-quantum well (st-MQW) laser diode chip is integrated with thermo-electric cooler (TEC) and PIN photodiode in a hermetically sealed 14-pin butterfly package.

FEATURES

Rated Output Power up to 320 mW (CW)
Widely Deployed Reliable Package Design with Industry Compatible 14 Pin Butterfly Footprint
Internal Thermo-electric Cooler (TEC) and Thermistor For Stable Operation
Integrated Pin Photodiode for Back Facet Monitor
Single Mode Fiber and Polarization Maintaining Fiber Pigtail
Epoxy Free Design Inside the Module for Long Term Reliability

USE IN

Pump Source for Er-Doped Fiber Amplifier
    C- and/or L-band EDFA
    Single Channel Amp. to DWDM Amp.
Pump Source for Raman Amplifier

Lead Time: In Stock
Datasheet
